AIR
MANDRELS
MANDRELS

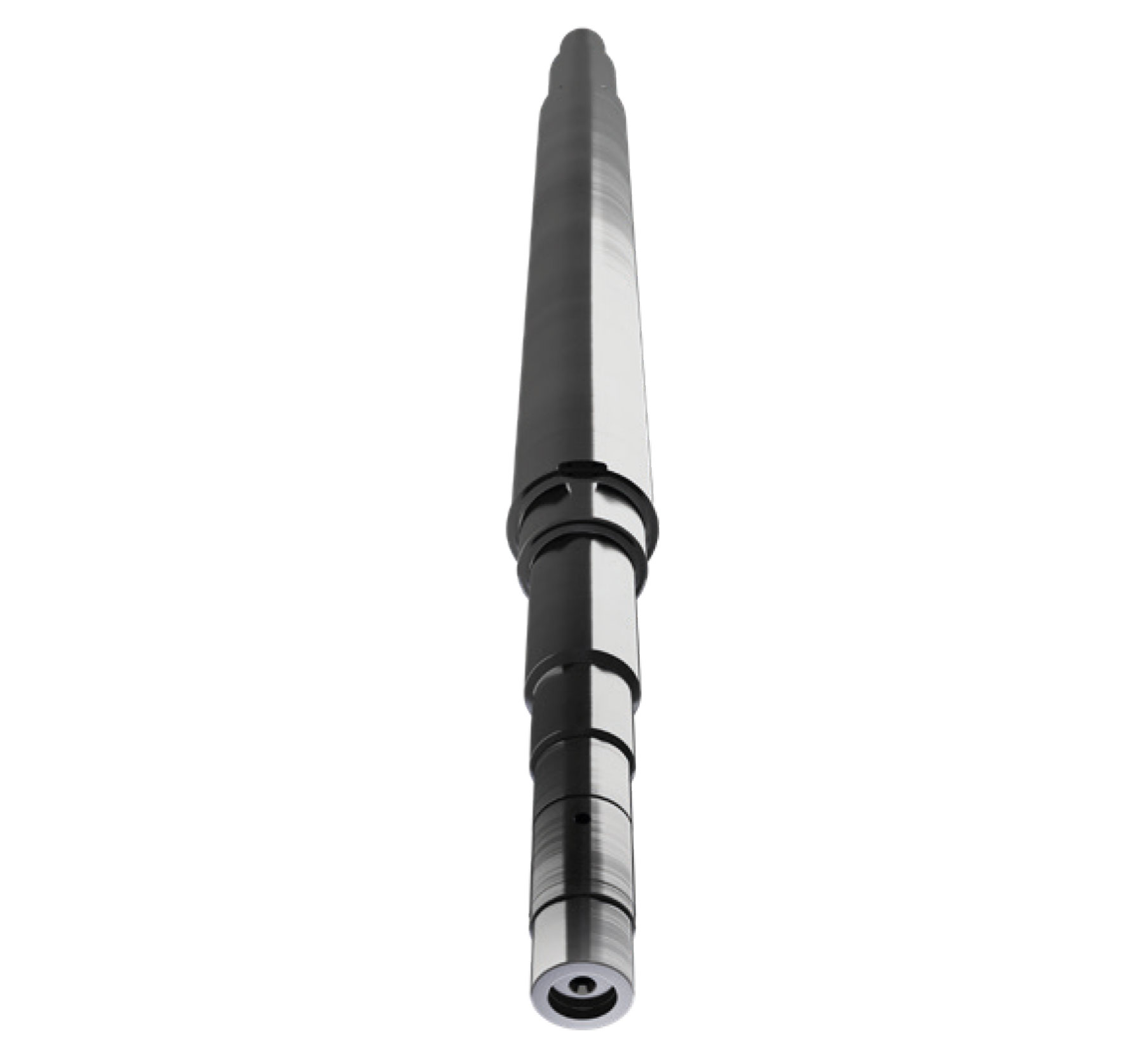

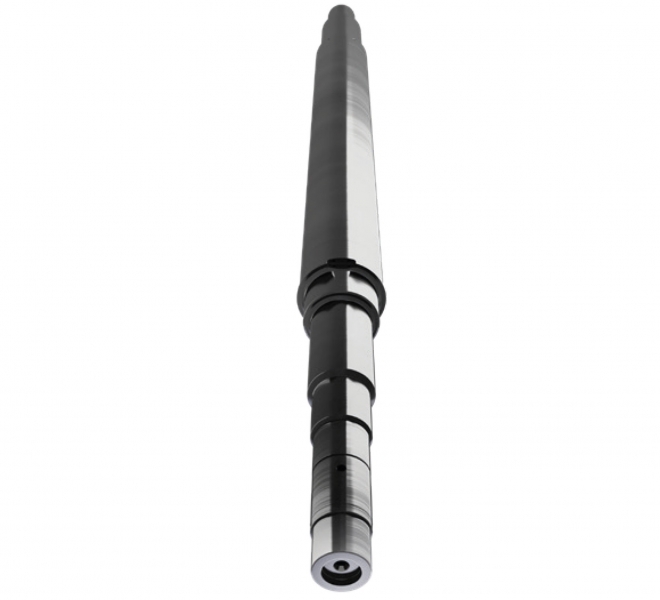

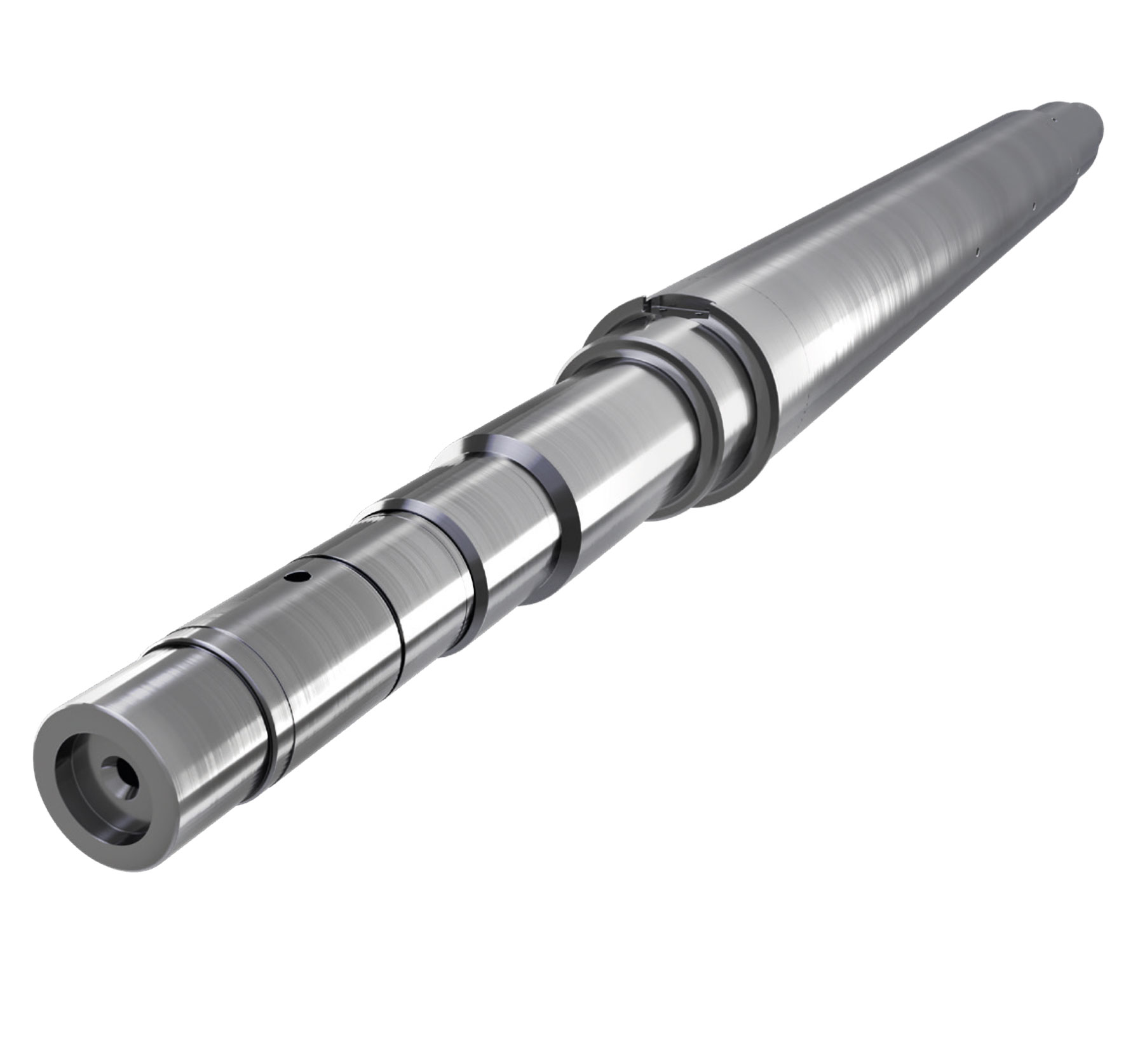

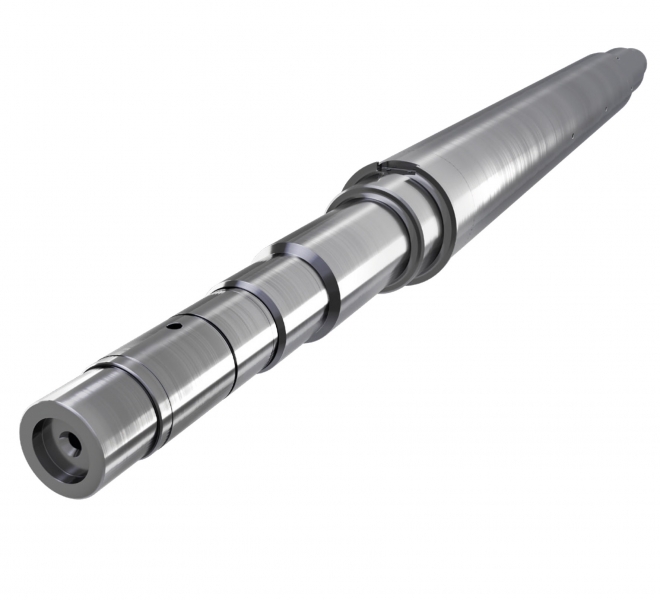

Our company offers a wide range of air mandrels, both parallel and conical, for the fitting of anilox or cliché sleeves.
They can be made in aluminium, with anodisation, chrome plating or plasma coating, in steel with chrome plating or plasma coating, and finally in carbon fibre with anti-wear surface treatment.
Feasible diameters range from 47.862mm (170 development) to 1800mm (3200 development) with a maximum available length of 12000mm.
APPLICATIONS
- Flexographic
- Rotogravure
DIMENSIONS
- 47.862 mm diameter (development 170)
- 1012,088 mm diameter (development 3200)
- Length 5000 mm
TYPE
- Parallel
- Conical
MATERIALS
- Steel
Finishes
– Chrome plating
– Plasma coating - Aluminum
Finishes
– Hard Anodized treatment
– Chrome plating
– Plasma coating - Carbon fiber
Finishes
– Anti-wear surface treatment
